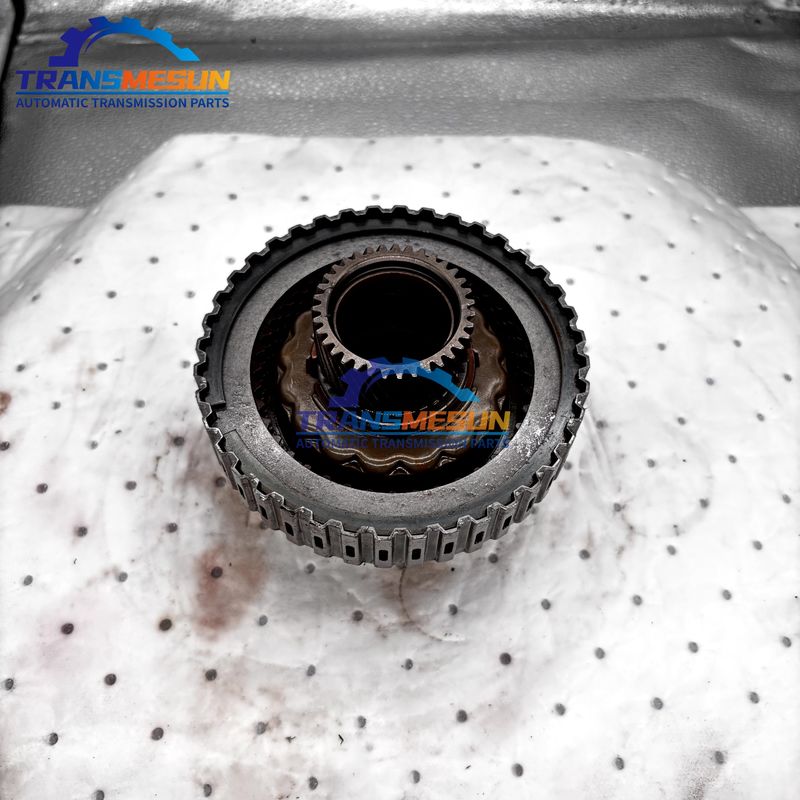

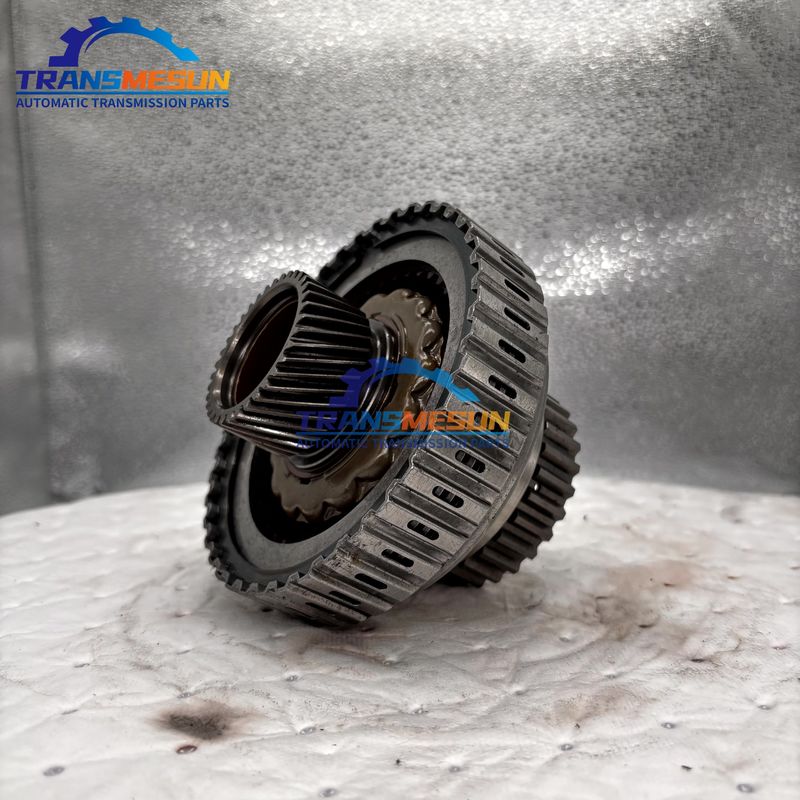

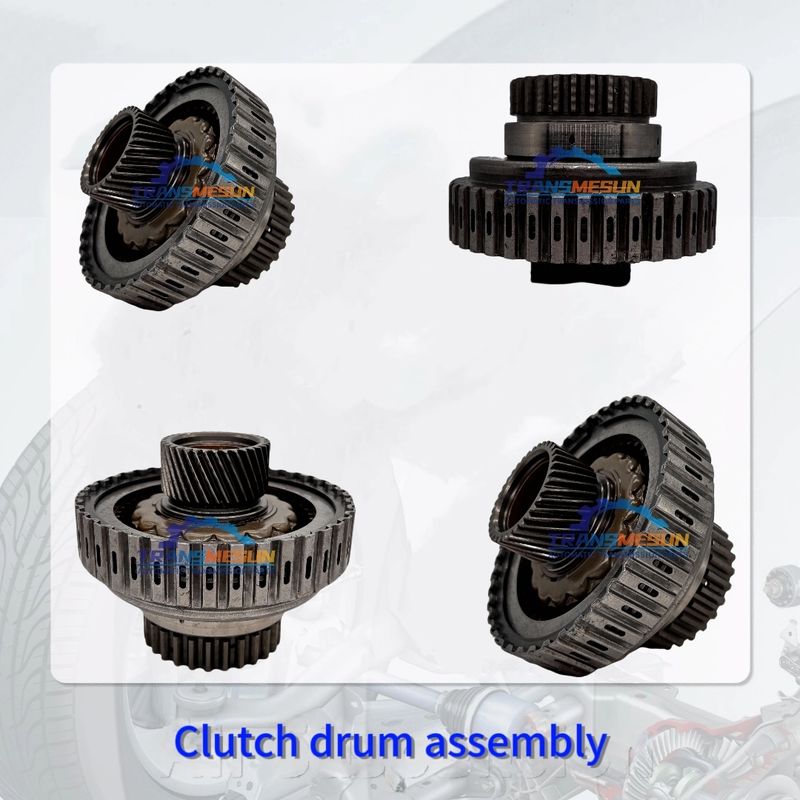

U151F transmisi otomatis low gear drum kopling 3420428011 berlaku untuk Toyota Hanlan Da
-
-
-
-
Fungsi:Mengaktifkan gir rendah / mundur dengan mengaktifkan paket kopling multi-plat di aplikasi gearset planet (umum di transmisi 4WD / RWD).
Komponen Utama:
-
Badan drum:Aluminium atau baja yang dikeraskan dengan spline presisi untuk penggabungan pelat kopling
-
Piston terintegrasi:Dioperasikan secara hidrolik dengan segel diperkuat untuk tekanan tinggi (60-100 psi)
-
Saluran Pendarahan:Mencegah hambatan kopling selama pelepasan
Mode kegagalan:
-
Pakaian Spline:Penyebab keterlibatan kopling yang tidak lengkap (seluncur di gir rendah)
-
Piston Seal bocor:Hasil dalam keterlambatan keterlibatan terbalik
-
Drum Cracks:Tekanan termal di dekat titik las (kehilangan pendorong tiba-tiba)
Pemeriksaan Kritis:
-
Mengukur aliran drum (<0,08mm)
-
Memverifikasi celah kopling (1,0-1,8 mm khas)
-
Pemeriksaan untuk biru (bukti overheating)
Tip Pro:Selalu ganti segel drum saat membangun kembali ¢ segel yang digunakan kembali memiliki tingkat kegagalan 80% lebih tinggi.
-
-
-
-
3420428011 Perangkat drum kopling
,Transmisi otomatis Clutch Drum Assembly
,3420428011 Perangkat drum kopling
