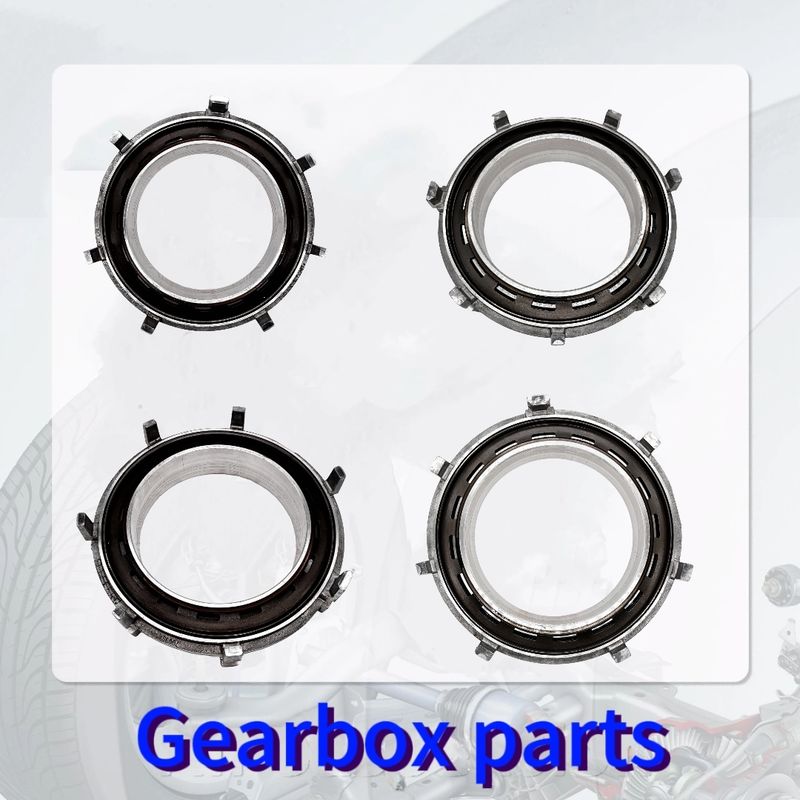

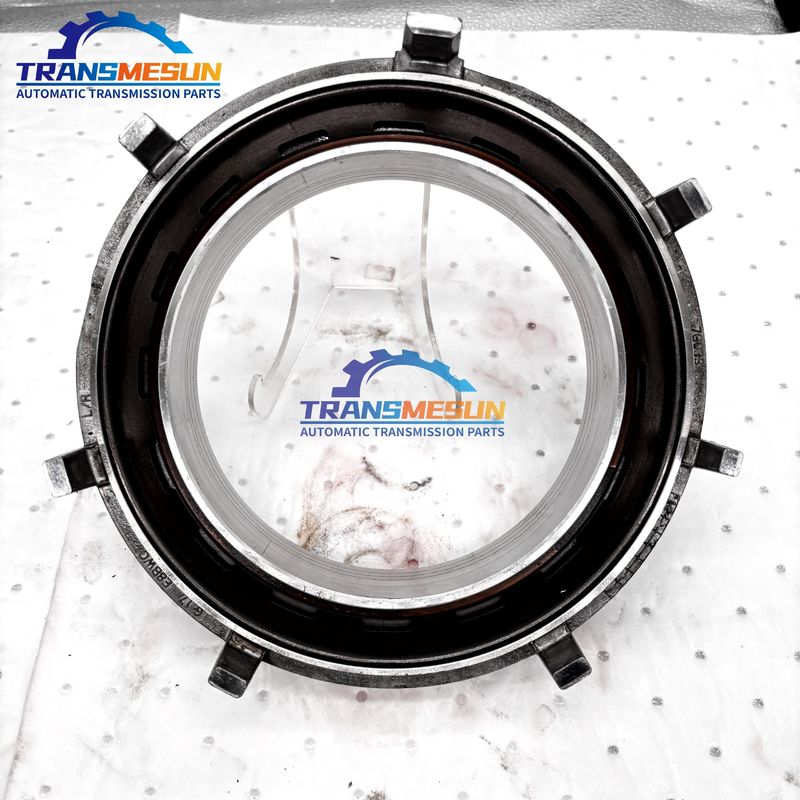

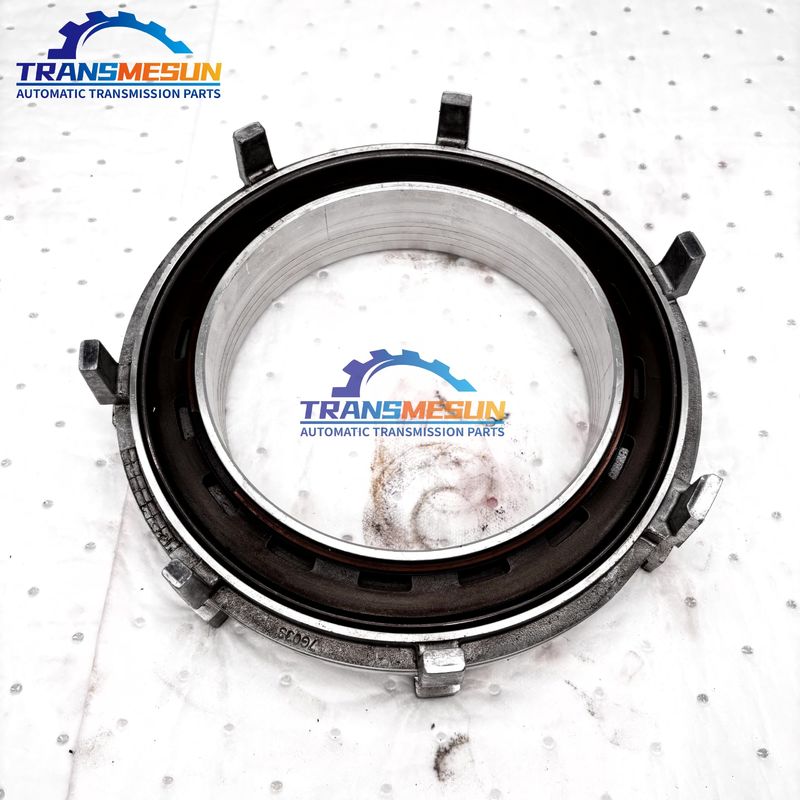

6F35 Cvt Otomatis Transmisi Pusat Dukungan Reverse Clutch Assembly Untuk Ford EDGE OE
Ringkasan Produk
Typical Faults: Clutch Drum Cracking Symptom: Sudden loss of reverse (P07A3 code) Cause: Fatigue near weld seams from torque shocks One-Way Clutch Roller Jamming Symptom: Harsh 1-2 upshift or reverse bang Trigger: Contaminated fluid or sprag spring failure Thrust Washer Wear Symptom: Axial play >0.3mm (whining in reverse) Root Cause: Improper preload during assembly Critical Checks: Sprag Test: Must lock counterclockwise only Drum Runout:
Properti Dasar
Nama Merek:
FORD
Nomor Model:
6F35
Properti Perdagangan
Jumlah pesanan minimum:
1
Harga:
0-1000
Ketentuan Pembayaran:
T/T
Deskripsi Produk
-
-
-
-
Kerusakan Umum:
-
Keretakan Drum Kopling
-
Gejala: Kehilangan mundur mendadak (kode P07A3)
-
Penyebab: Kelelahan di dekat lasan akibat guncangan torsi
-
-
Roller Kopling Satu Arah Macet
-
Gejala: Peningkatan gigi 1-2 yang kasar atau hentakan mundur
-
Pemicu: Fluida terkontaminasi atau kegagalan pegas sprag
-
-
Keausan Washer Dorong
-
Gejala: Goyang aksial >0.3mm (dengung saat mundur)
-
Akar Penyebab: Pemuatan awal yang tidak tepat selama perakitan
-
Pemeriksaan Kritis:
-
Uji Sprag: Harus mengunci hanya berlawanan arah jarum jam
-
Runout Drum: <0.05mm toleransi
-
Ketebalan Washer: Ukur dengan mikrometer
Tips Pro:Ganti seluruh rakitan jika splines menunjukkan pemolesan – mengindikasikan keausan roda gigi planet.
-
-
-
-
Rincian produk
Menyoroti:
6F35 Komponen kopling belakang
,Ganti kopling dengan transmisi otomatis
,Transmisi otomatis 6F35 cvt
Year：:
2010-2019
MODEL：:
6F35
SIZE::
25X25X20cm
Brand：:
Mengarungi
Item Weight::
4kg
ＯＥＮＯ:
BL8Z7L328C
Applicable Brand::
2010-2019 Ford Fusion 2013-2019 Ford Taurus 2014-2019 Ford Transit Connect 2015-2019 Lincoln M
