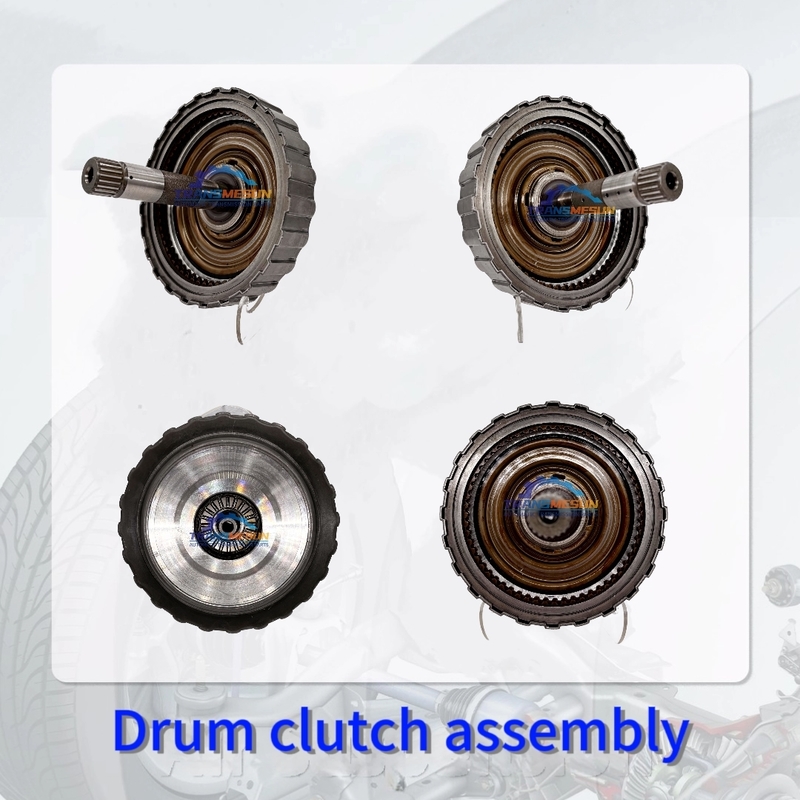

Transmisi AWTF60SN drum kopling K2 4-5-6, 4 kopling, poros 15 spline, rakitan kopling

Ringkasan Produk
Application: ZF 6HP/8HP or similar, handling 4th-6th gear shifts under high torque (500–700Nm). Design: 15-spline hardened steel shaft (SAE 4140, 60–64 HRC) for direct hub engagement. 4-clutch pack (3 friction + 4 steel plates, 0.5–0.7mm clearance new). Critical Specs: Drum OD: 120–125mm, anodized for thermal resistance (max 200°C). Spline tolerance: ±0.03mm (wear >0.1mm causes slippage). Failure Modes: Spline shear (fatigue under abrupt shifts). Drum warping (overheat cycles
Properti Dasar
Nama Merek: Volkswagen Passat
Nomor Model: AWTF60SN
Properti Perdagangan
Jumlah pesanan minimum: 1
Harga: 0-1000
Ketentuan Pembayaran: T/T
Tag:

Transformator torsi transmisi

Suku Cadang Transmisi Otomatis

Penggabungan kopling transmisi
Deskripsi Produk

  1. Aplikasi:ZF 6HP/8HP atau serupa, menangani pergeseran gigi ke-4-6 di bawah torsi tinggi (500 ∼ 700Nm).

  2. Desain:

    • Arus baja bertulang 15(SAE 4140, 60?? 64 HRC) untuk keterlibatan hub langsung.

    • Paket 4 kopling(3 gesekan + 4 pelat baja, clearance 0,5 ∼ 0,7 mm baru).

  3. Spesifikasi Kritis:

    • Drum OD:120×125mm, di-anodisasi untuk ketahanan termal (max 200°C).

    • Toleransi saluran air:± 0,03 mm (pakaian > 0,1 mm menyebabkan geser).

  4. Mode kegagalan:

    • Spline shear(kelelahan di bawah shift mendadak).

    • Pengelompokan drum(siklus overheat).

    • Penembakan segel(kerugian tekanan dalam fase dorongan).

Catatan:MembutuhkanATF viskositas rendah(misalnya, ZF LG8) untuk modulasi kopling yang optimal.

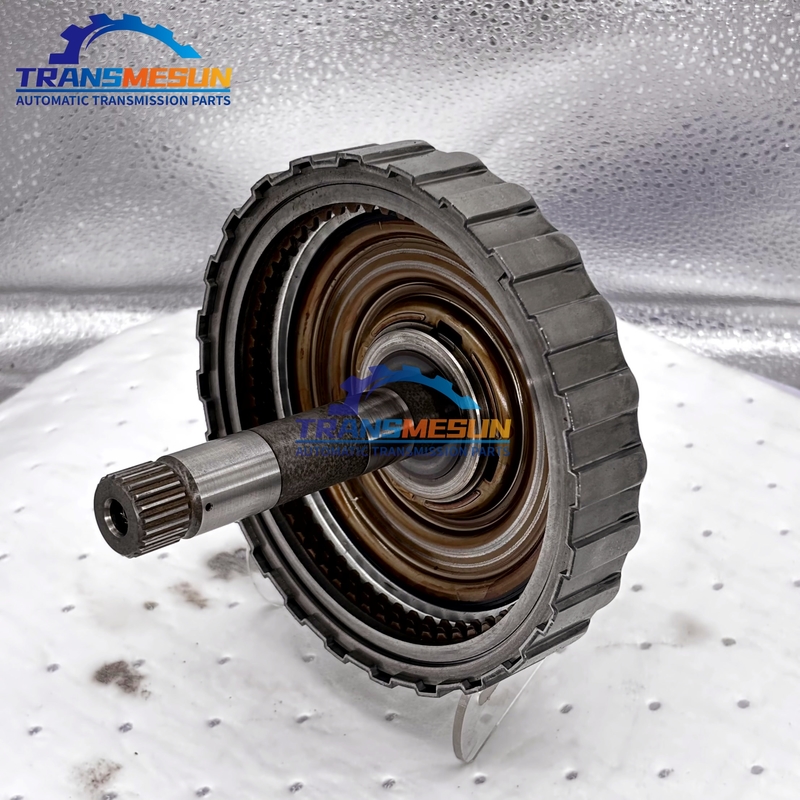

Transmisi AWTF60SN drum kopling K2 4-5-6, 4 kopling, poros 15 spline, rakitan kopling 0

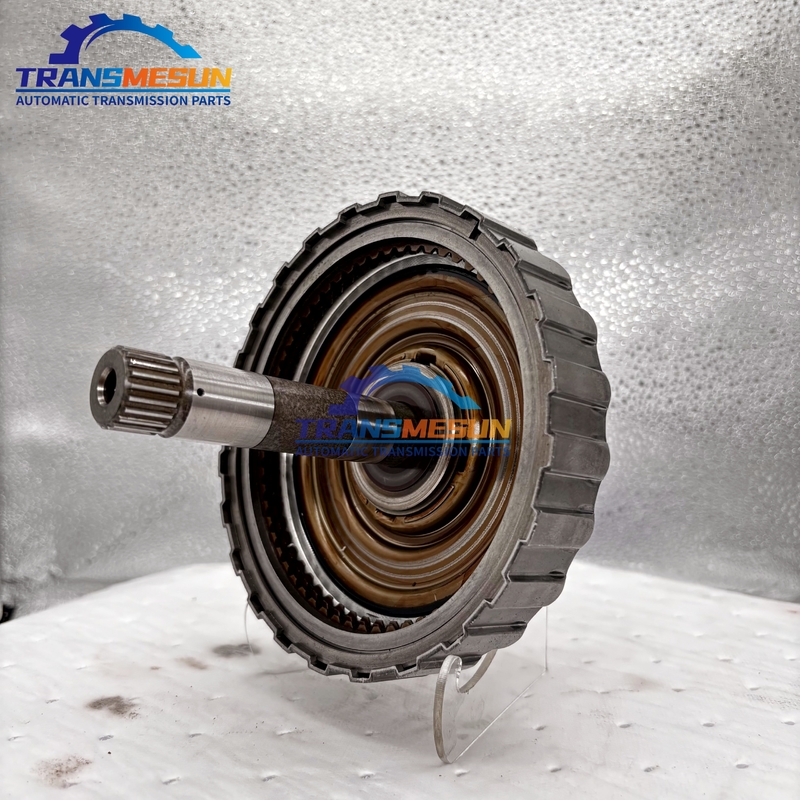

Transmisi AWTF60SN drum kopling K2 4-5-6, 4 kopling, poros 15 spline, rakitan kopling 1

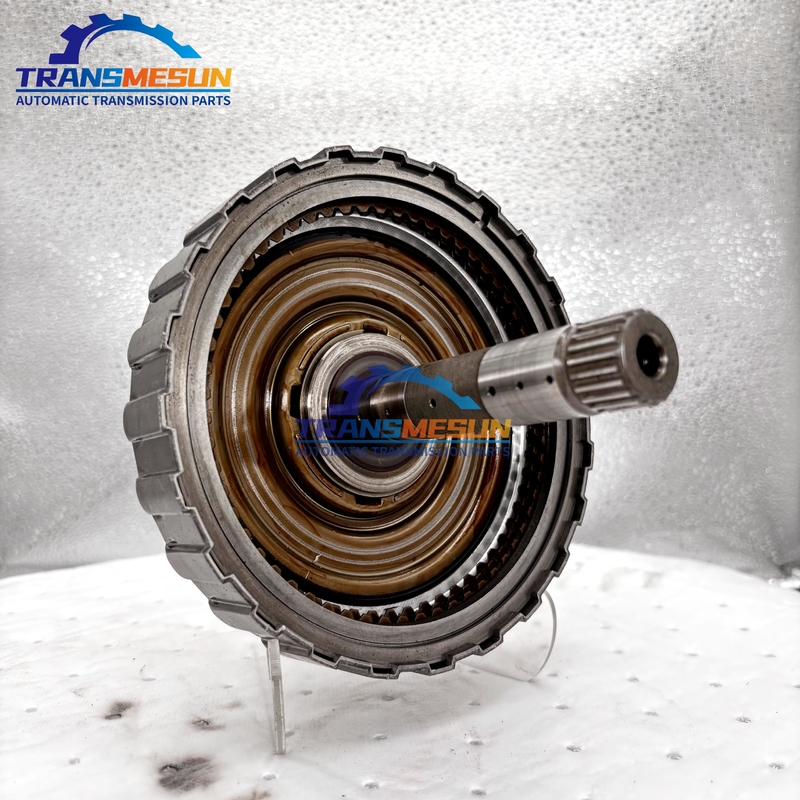

Transmisi AWTF60SN drum kopling K2 4-5-6, 4 kopling, poros 15 spline, rakitan kopling 2



Rincian produk
Menyoroti:

4-5-6 K2 transmission clutch drum

,

15 spline shaft clutch assembly

,

4 clutches transmission parts
Year：: 2007-
MODEL：: AWTF60SN
SIZE:: 15X15X15CM
Brand：: Volkswagen Passat
Item Weight:: 2.5kg
ＯＥＮＯ: 09G 09M 09K AWTF60SN
Applicable Brand:: Shuttle; Golf; CC. Skoda: Horiseon; Miro; Speedo. Mini: mini
