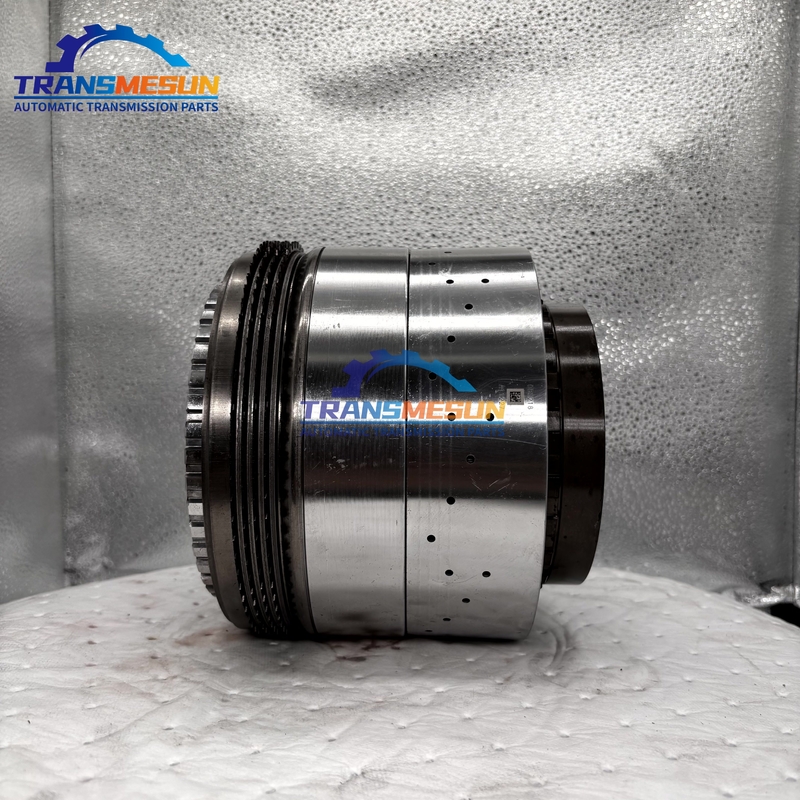

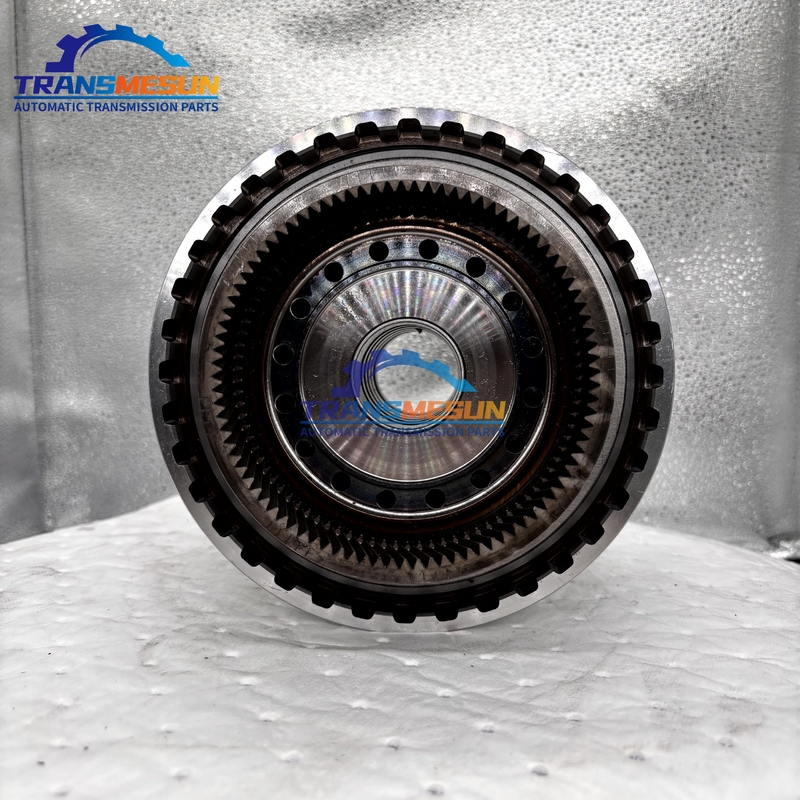

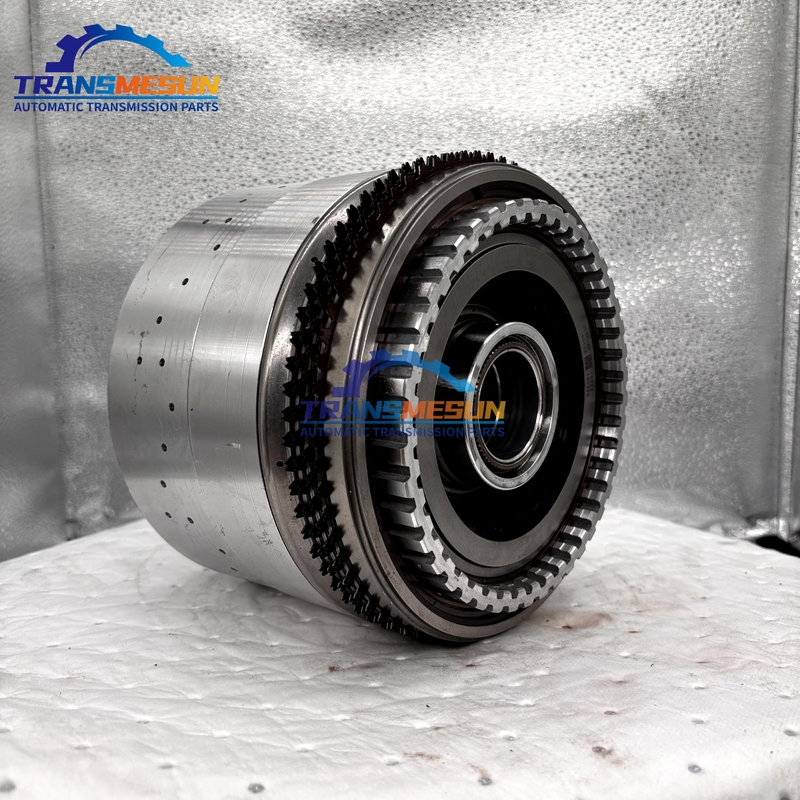

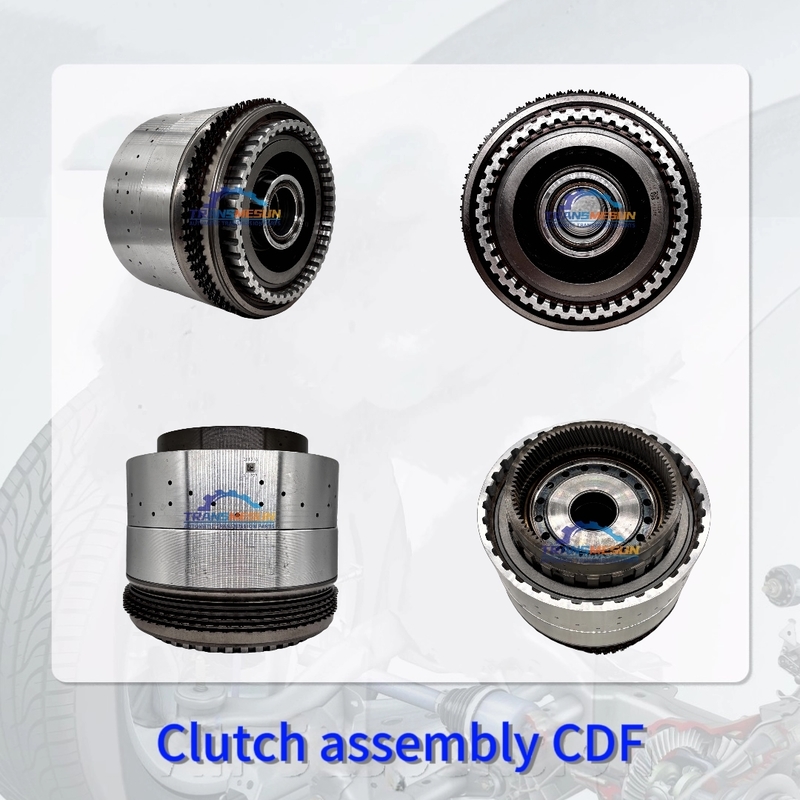

10R60 Rakitan kopling transmisi otomatis CVT 10-percepatan CDF rakitan hub tiga-obat
Ringkasan Produk
Application: Ford/GM 10R60/80 RWD applications, managing direct/overdrive gear transitions under 800+ Nm torque. Design: Nested tri-drum assembly (K1/K2/K3 clutches) with laser-welded seams 6-pinion planetary gearset integration 10-layer clutch packs (5 friction + 5 steel plates per drum) Critical Specs: Drum material: Micro-alloyed steel (55-58 HRC) Spline tolerance: 0.01-0.04mm (direct clutch hub) Cooling jets: 4x 0.8mm nozzles per drum Failure Modes: Drum distortion
Properti Dasar
Nama Merek:
Ford
Nomor Model:
10R60
Properti Perdagangan
Jumlah pesanan minimum:
1
Harga:
0-1000
Ketentuan Pembayaran:
T/T
Deskripsi Produk
Aplikasi:Ford/GM 10R60/80 RWD aplikasi, mengelola transisi gigi langsung / overdrive di bawah 800+ Nm torsi.
-
-
-
Desain:
-
Perangkat tri-drum bersarang(K1/K2/K3 kopling) dengan jahitan las laser
-
Integrasi set gigi planet 6-pinion
-
Paket kopling 10 lapis(5 gesekan + 5 pelat baja per drum)
-
-
Spesifikasi Kritis:
-
Bahan drum:Baja micro-alloy (55-58 HRC)
-
Toleransi saluran air:0.01-0.04mm (hub kopling langsung)
-
Jet pendingin:4 x 0,8 mm nozzles per drum
-
-
Mode kegagalan:
-
Penyimpangan drum(siklus termal > 230°C)
-
Pembuatan spalling dengan bantalan jarum(kesesuaian yang salah)
-
Kaca pelat kopling(degradasi cairan)
-
Catatan:MembutuhkanMercon ULV fluida; model pasca-2020 memiliki poros stator yang diperkuat.
-
-
Rincian produk
Menyoroti:
10R60 CVT transmission clutch assembly
,10-speed automatic transmission hub
,CDF three-drug clutch assembly
Year：:
2020-2026
MODEL：:
10R60
SIZE::
35X25X25CM
Brand：:
Ford
Item Weight::
7kg
ＯＥＮＯ:
L1MZ7H351B
Applicable Brand::
Ford Bronco Explorer Explorer Sport
