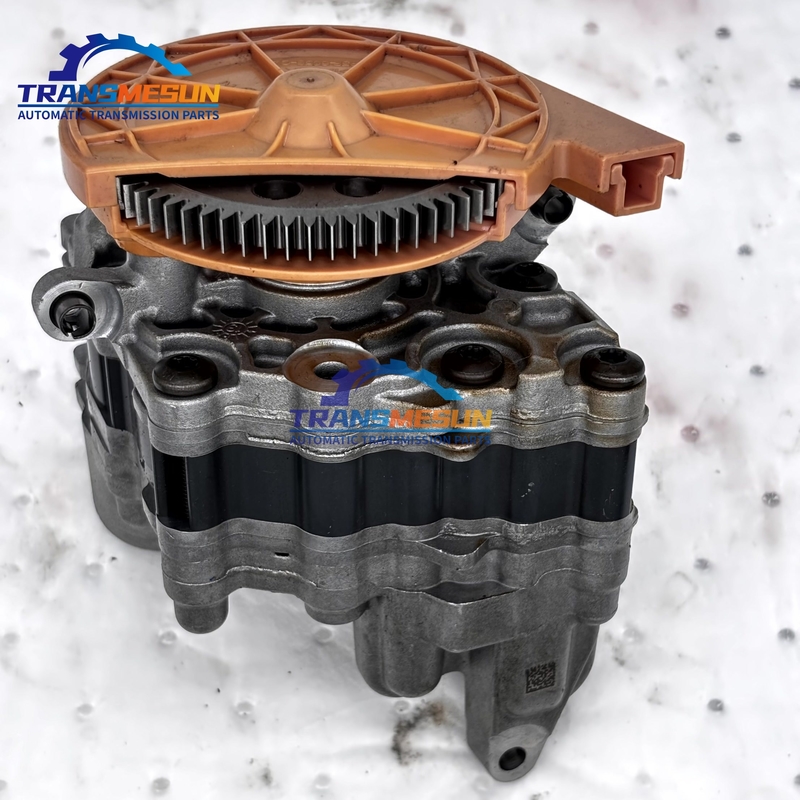

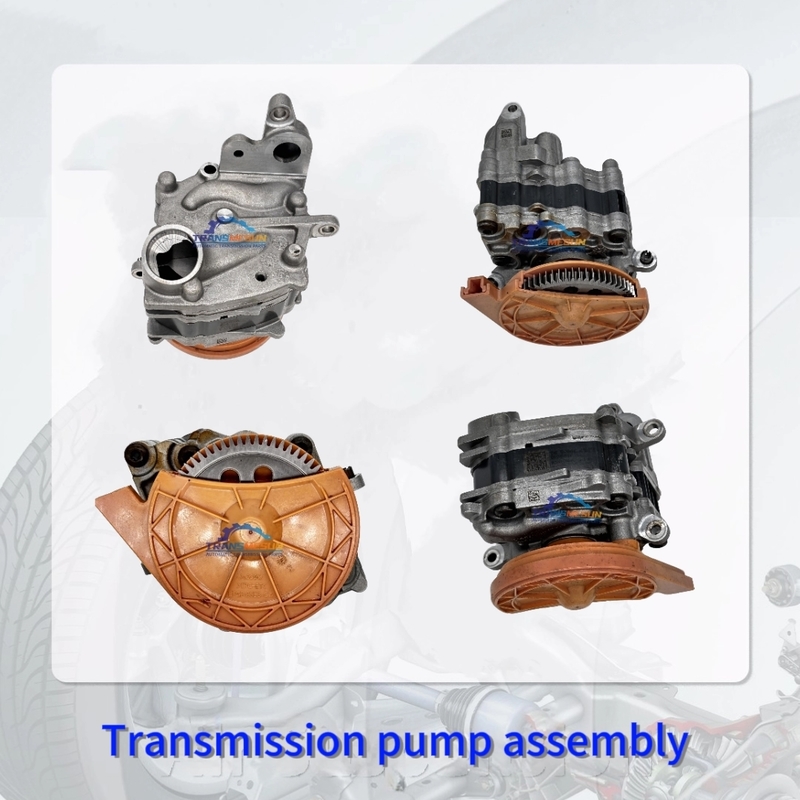

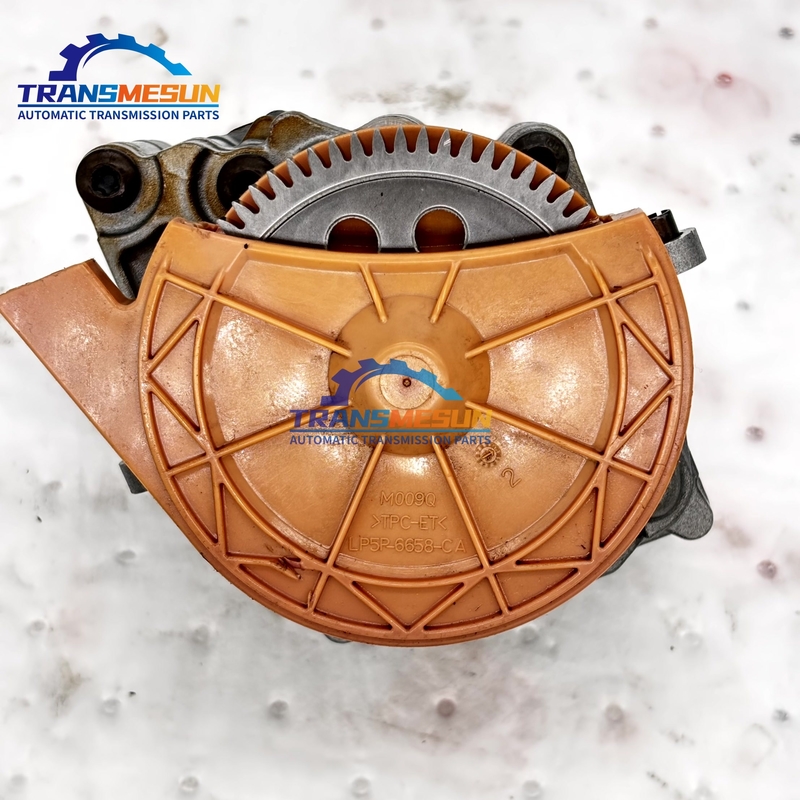

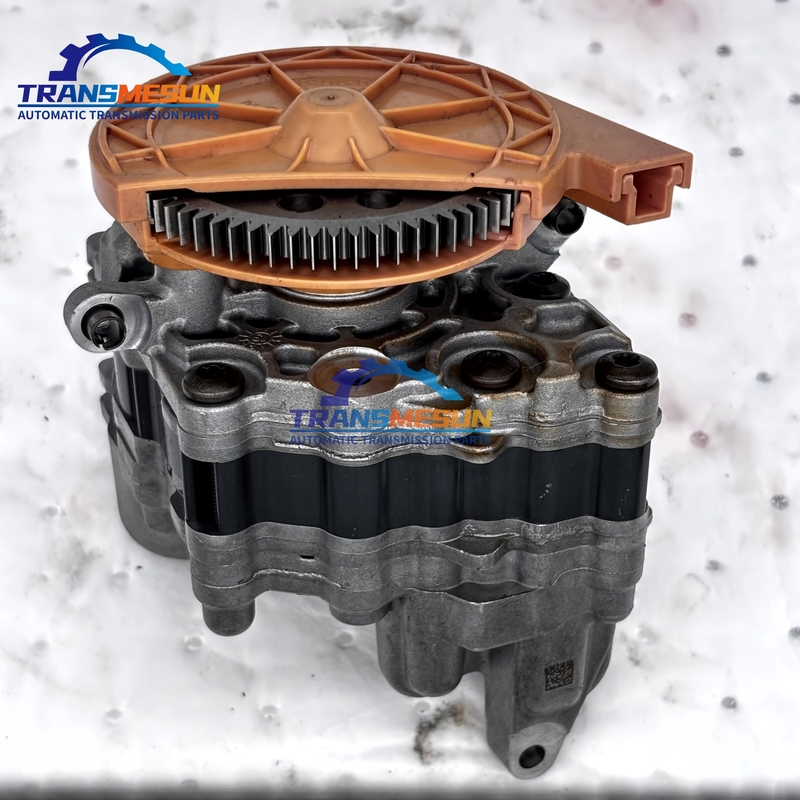

10R60 10 kecepatan transmisi otomatis CVT pompa minyak mekanis
Ringkasan Produk
Function: High-pressure hydraulic supply (25–120 psi) for clutch actuation and lubrication in Ford RWD applications. Design: Variable-displacement vane pump (12-vane rotor, hardened steel housing) Electronic pressure control valve (PWM-regulated flow) Key Specs: Flow rate: 18–22 L/min @ 2500 RPM Clearance: 0.02–0.05mm vane-to-cam (replace if >0.12mm) Relief valve setting: 135±5 psi Failure Modes: Vane sticking (debris or fluid oxidation) Pressure sensor drift (causing shift
Properti Dasar
Nama Merek:
Ford
Nomor Model:
10R60
Properti Perdagangan
Jumlah pesanan minimum:
1
Harga:
0-1000
Ketentuan Pembayaran:
T/T
Deskripsi Produk
-
Fungsi: Suplai hidraulik bertekanan tinggi (25–120 psi) untuk penggerak kopling dan pelumasan pada aplikasi Ford RWD.
-
Desain:
-
Pompa baling-baling perpindahan variabel (rotor 12-baling, rumah baja yang dikeraskan)
-
Katup kontrol tekanan elektronik (aliran yang diatur PWM)
-
-
Spesifikasi Utama:
-
Laju aliran: 18–22 L/min @ 2500 RPM
-
Jarak bebas: 0.02–0.05mm baling-ke-cam (ganti jika >0.12mm)
-
Pengaturan katup pelepas: 135±5 psi
-
-
Moda Kegagalan:
-
Baling-baling macet (serpihan atau oksidasi fluida)
-
Pergeseran sensor tekanan (menyebabkan suar perpindahan)
-
Keausan roda gigi penggerak (kehilangan tegangan rantai)
-
Catatan: Membutuhkan Fluida Mercon ULV; Model 2023+ menampilkan baling-baling anti-kavitasi yang ditingkatkan
Rincian produk
Menyoroti:
10R60 CVT transmission oil pump
,10-speed automatic transmission pump
,mechanical oil pump assembly
Year：:
2020-2026
MODEL：:
10R60
SIZE::
15X15X15CM
Brand：:
Ford
Item Weight::
2kg
ＯＥＮＯ:
RFLP5P7B325BA
Applicable Brand::
Ford Bronco Explorer Explorer Sport
Mrs. Kinny
Foreign trade Manager
- E-mail: admin@transmesun.com
- Telp: +8618665691829
- ada apa: 8618665691829
-
Wechat wechat:
+8618665691829
